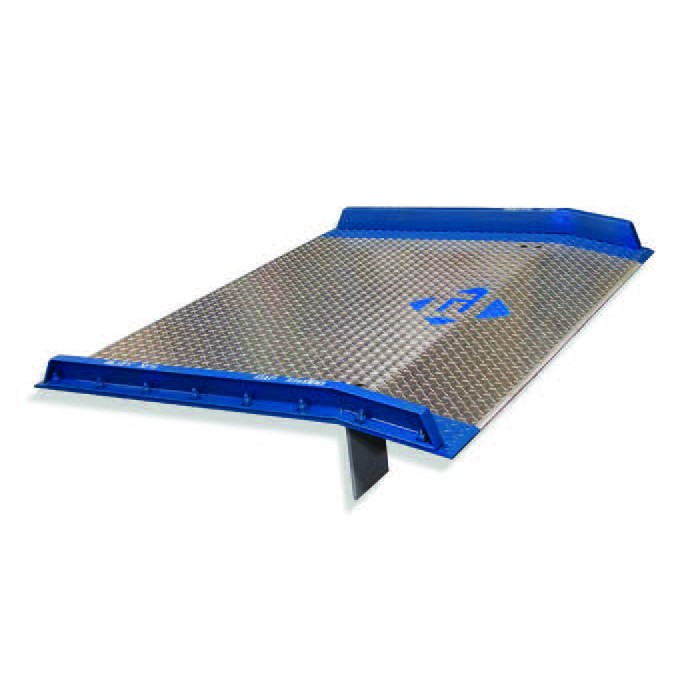

Aluminum Dock Board
This dock board is made from high grade “diamond deck” aluminum and reinforced with side curbs made from structural steel make a light weight alternative to steel boards. Curbs are bolted in place lending their weight carrying ability to an already tough and ready product. Locking legs provide secure positioning & runoff protection while an 11″ lip offers smooth transition from the dock to the truck. ANSI Certified.
| MODEL NUMBER | CAPACITY(LBS) | WIDTH (IN) | LENGTH (IN) | WEIGHT (LBS) | LEG LENGTH (IN) | 14% GRADE HEIGHT UP (IN) | 19% GRADE HEIGHT UP (IN) |
|---|---|---|---|---|---|---|---|
| AC5436 | 10000 | 54 | 36 | 111.0000 | 7 | 3 | 5 |
| AC5448 | 10000 | 54 | 48 | 146.0000 | 9 | 5 | 7 |
| AC6036 | 10000 | 60 | 36 | 127.0000 | 7 | 3 | 5 |
| AC6042 | 10000 | 60 | 42 | 140.0000 | 9 | 4 | 6 |
| AC6048 | 10000 | 60 | 48 | 157.0000 | 9 | 5 | 7 |
| AC6054 | 10000 | 60 | 54 | 179.0000 | 11 | 6 | 8 |
| AC6060 | 10000 | 60 | 60 | 198.0000 | 11 | 7 | 9 |
| AC6072 | 10000 | 60 | 72 | 253.0000 | 13 | 8.5 | 11 |
| AC6084 | 10000 | 60 | 84 | 297.0000 | 17 | 10 | 13 |
| AC6090 | 10000 | 60 | 90 | 317.0000 | 17 | 11 | 14 |
| AC6096 | 10000 | 60 | 96 | 337.0000 | 17 | 12 | 15 |
| AC6630 | 10000 | 66 | 7 | 109.0000 | 20 | 2 | 3 |
| AC6636 | 10000 | 66 | 36 | 128.0000 | 7 | 3 | 5 |
| AC6642 | 10000 | 66 | 42 | 150.0000 | 9 | 4 | 6 |
| AC6654 | 10000 | 66 | 54 | 191.0000 | 11 | 6 | 8 |
| AC7236 | 10000 | 72 | 36 | 136.0000 | 7 | 3 | 5 |
| AC7248 | 10000 | 72 | 48 | 179.0000 | 9 | 5 | 7 |
| AC7260 | 10000 | 72 | 60 | 225.0000 | 11 | 7 | 9 |
| BC5442 | 15000 | 54 | 42 | 157.0000 | 9 | 4 | 6 |
| BC5448 | 15000 | 54 | 48 | 177.0000 | 9 | 5 | 7 |
| BC6036 | 15000 | 60 | 36 | 145.0000 | 7 | 3 | 5 |
| BC6042 | 15000 | 60 | 42 | 170.0000 | 9 | 4 | 6 |
| BC6048 | 15000 | 60 | 48 | 191.0000 | 9 | 5 | 7 |
| BC6060 | 15000 | 60 | 60 | 247.0000 | 11 | 7 | 9 |
| BC6072 | 15000 | 60 | 72 | 304.0000 | 13 | 8.5 | 11 |
| BC7236 | 15000 | 72 | 36 | 167.0000 | 7 | 3 | 5 |
| BC7248 | 15000 | 72 | 48 | 230.0000 | 9 | 5 | 7 |
| BC7260 | 15000 | 72 | 60 | 277.0000 | 11 | 7 | 9 |
