Description
DEEP REACH
The Bendi B40AC-DR and B50AC-DR deep reach forklifts can stack loads two deep in aisles as narrow as 96” (2.43 M)*, have a starting capacity of 2,500 lbs (1,136 kg) at 24” (600 mm) load center and lift heights available to 35′ 5″ (10.80 M).

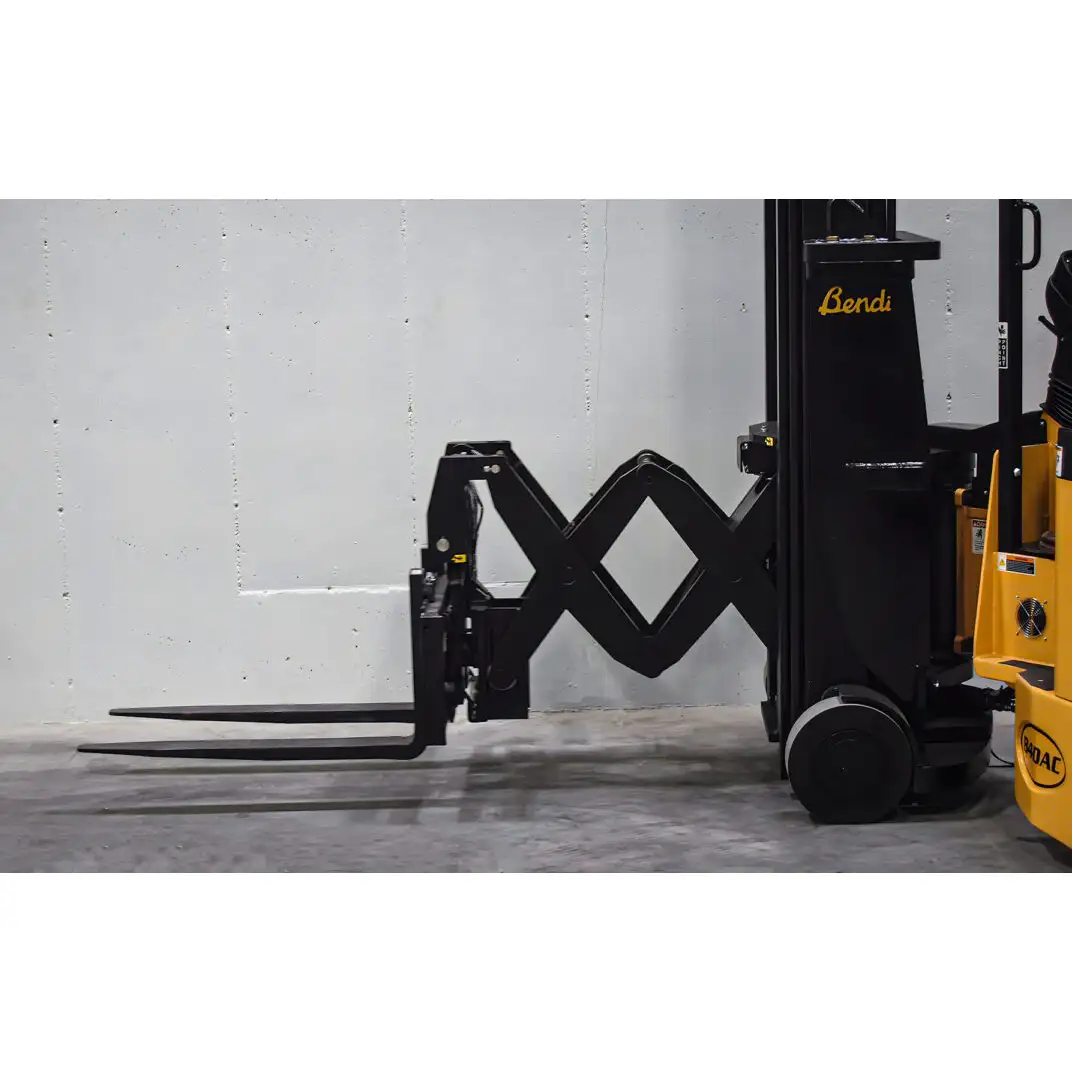

The reach from face to mast is 52” (1,321 mm) and the integral pantograph reach stroke is 41” (1,041 mm) They have a 33” (838 mm) wide tilting and side shifting fork carriage.
They are a 4-wheel articulating forklift with dual independently driven rear-drive tires and soft-poly front load tires. The Bendi B40AC-DR and B50AC-DR can work inside and outside on paved surfaces and have a floating front axle allowing the truck to ride smoothly over uneven floors. They can do the same jobs as reach and counterbalanced trucks but in much narrower aisles.
BENDI DEEP REACH FORKLIFT FEATURES
- 2,500 lb. (1,136kg) and 3,000 lb. (1,364kg) Capacity at 24″ (600mm) Load Center
- Four-Wheel Design, Dual Rear Wheel Drive
- Integral 8″ (200mm) Stroke Side-shifter and 36″ (914mm) High Load Backrest
- Hydraulic Power Steering – Front Wheel Steer
- Independently Controlled Rear Wheels Allow Independent Speed Control of Each Drive Tire Based on Steering Angle
- AC Traction and Hydraulic Motors Ensure Minimal Maintenace and High Efficiency
- Creep Speed Mode Adds Enhanced Control when Handling Loads at High Elevations or While Training Operators
- High-Efficiency Curtis AC Controllers Provide Trouble Free Operation
- Interactive LCD Status Monitor (BDI with Lift Interrupt, Hour Meter with Service Monitor, Diagnostic Code Display, Input Device Calibration)
- 48 Volt Electrical System
- Optional Cold Storage Conditioned to -22°F (-30°C)
Bendi Deep Reach Forklift Options
- Non-Standard Fork Lengths
- LED Headlights, Flashing Light and Rear Safety Lights
- Non-Marking Tires
- Vinyl Seat
- Slide-Out Sideways Battery Tray
- Fire Extinguisher
- Laser Fork Height Indicator
- Carriage Mounted Camera with Operator Compartment Monitor
- Capable of Freezer Operation to -22°F (-30°C)
