Description

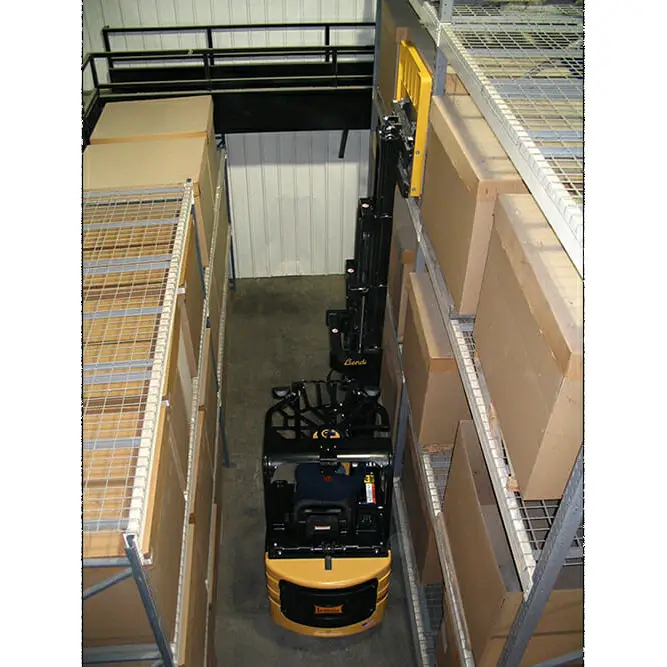

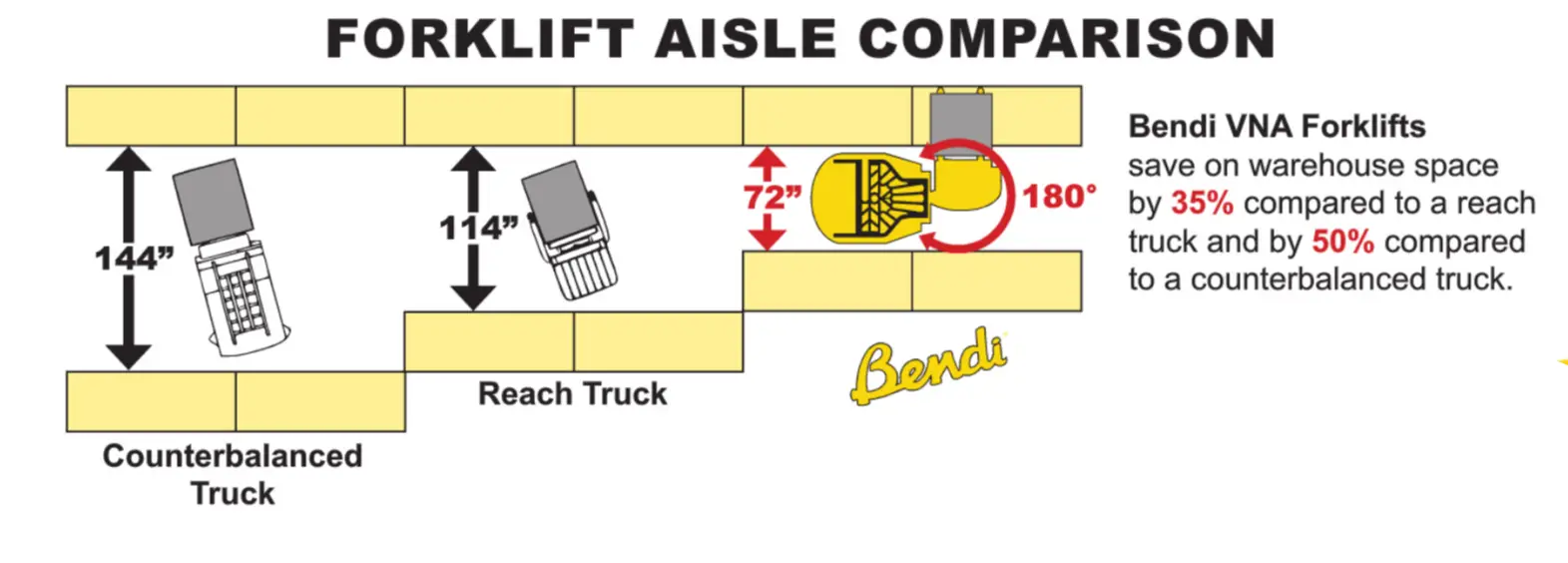

The Bendi B30AC and B40AC forklifts work in aisles as narrow as 78″ (1.98M)*, have a starting capacity of 3,000 lbs (1361 kg) at 24″ (600mm) load center and lift heights available to 26′ (7.92M).

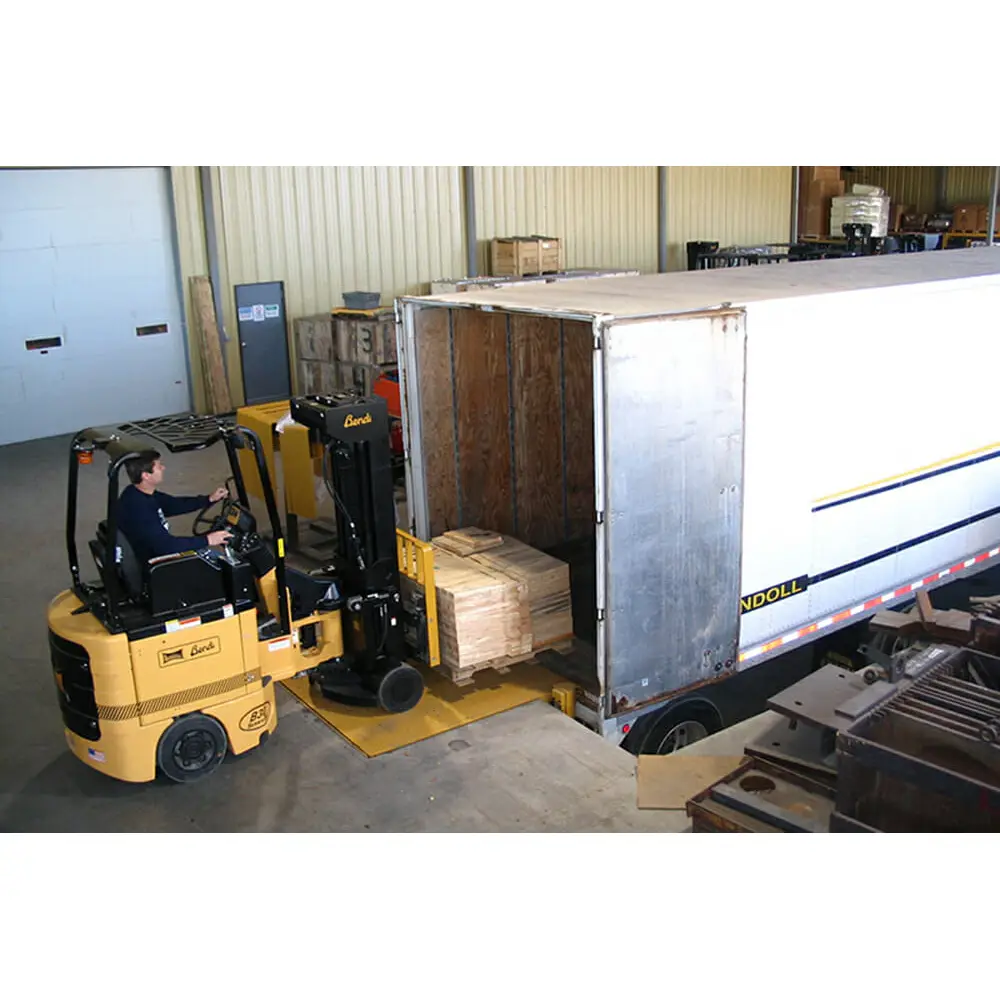

They are 4-wheel articulating forklifts with dual independently driven rear-drive tires and soft-poly front load tires. Excellent traction, braking and power enable climbing steep ramps with loads. Three or four stage masts are available making this unit excellent for loading/unloading trailers and containers. The Bendi B30AC and B40AC can also work inside and outside on paved surfaces and have a floating front axle allowing the trucks to ride smoothly over uneven floors. They can do the same jobs as reach and counterbalanced trucks but in much narrower aisles.
* Based on 48” (1200mm) long x 40” (1000mm) wide load.
Bendi Narrow Aisle Forklift Features
- 3,000 lb. (1361kg) and 4,000 lb. (1814kg) Capacity at 24″ (600mm) Load Center
- Four-Wheel Design, Dual Rear Wheel Drive Provides Excellent Power, Braking and Traction
- Ergonomic Design for Exceptional Operator Comfort and Safety
- Integral Wide Stroke Sideshifter Makes Placing and Picking Loads Effortless
- DuraSteer™ Front Wheel Hydraulic Steering Provides Smooth, Reliable, Long-Lasting Steering Control
- Independently Controlled Rear Wheels Allow Independent Speed Control of Each Drive Tire Based on Steering Angle
- Creep Speed Mode Adds Enhanced Control when Handling Loads at High Elevations or While Training Operators
- High Visibility Mast Allows Optimum Safety and Control
- AC Traction and Hydraulic Motors Ensure Minimal Maintenance and High Efficiency
- High Efficiency Curtis AC Controllers Provide Trouble Free Operation
- Interactive LCD Status Monitor (BDI with Lift Interrupt, Hour Meter with Service Monitor, Diagnostic Code Display, Input Device Calibration)
- 48 Volt Electrical System and Large Capacity Battery Compartment
- Optional Cold Storage Conditioned to -22°F (-30°C)
Options
- Non-Standard Fork Lengths
- LED Headlights, Flashing Light, and Rear Safety Lights
- Integral Side Shifting Fork Positioner
- Auxiliary Hydraulics
- Non-Marking Tires
- UL-583, Type EE Electrical Rating, FM Approved
- Vinyl Seat
- Slide-Out Sideways Battery Tray
- Fire Extinguisher
- Lazer Fork Height Indicator
- Carriage Mounted Camera with Operator Compartment Monitor
- Cold Storage Option for Freezer Operation to -22°F (-30°C)
