Description
HIGH LIFT

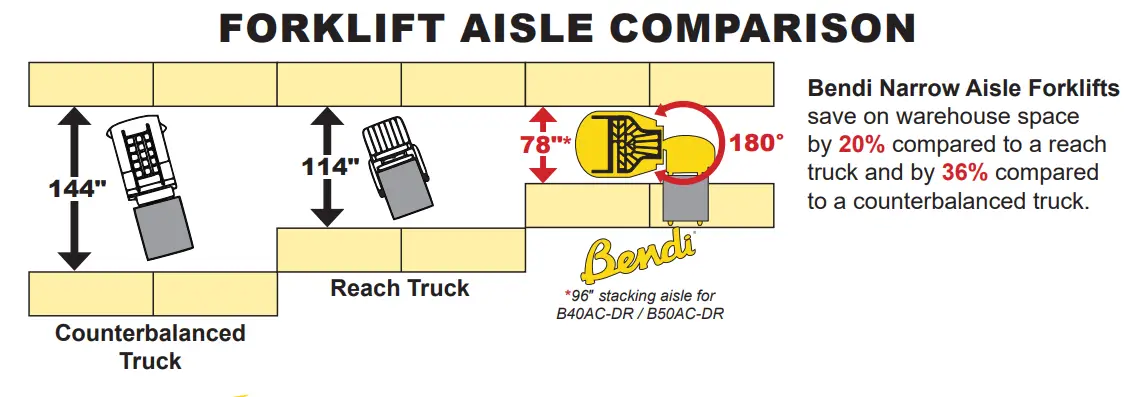

The Bendi B40AC-HL and B50AC-HL forklifts work in aisles as narrow as 78″ (1.98M)*, have a starting capacity of 4,400 lbs (1996 kg) at 24″ (600mm) load center and lift heights available to 41′ (12.50M).
They are a 4-wheel articulating forklift with dual independently driven rear-drive tires and soft-poly front load tires. The Bendi B40AC-HL and B50AC-HL can work inside and outside on paved surfaces and have a floating front axle allowing the trucks to ride smoothly over uneven floors. They can do the same jobs as reach and counterbalanced trucks but in much narrower aisles.
BENDI NARROW AISLE HIGH LIFT FEATURES
- 4,400 lb. (1,996kg) and 5,000 lb. (2,268kg) Capacity at 24″ (600mm) Load Center
- Four-Wheel Design, Dual Rear Wheel Drive
- Adjustable Seat and Steering Wheel
- Integral 11.2″ (285mm) Stroke Side-shifter and 36″ (914mm) High Load Backrest
- DuraSteerTM Front Wheel Hydraulic Steering Provides Smooth, Reliable, Long-Lasting Steering Control
- Creep Speed Mode Adds Enhanced Control when Handling Loads at High Elevations or While Training Operators
- High Visibility Mast Allows Optimum Safety and Control
- Independently Controlled Rear Wheels Allow Independent Speed Control of Each Drive Tire Based on Steering Angle
- AC Traction and Hydraulic Motors Ensure Minimal Maintenance and High Efficiency
- High-Efficiency Curtis AC Controllers Provide Trouble Free Operation
- Interactive LCD Status Monitor (BDI with Lift Interrupt, Hour Meter with Service Monitor, Diagnostic Code Display, Input Device Calibration)
- 48 Volt Electrical System
- Optional Cold Storage Conditioned to -22°F (-30°C)
BENDI NARROW AISLE HIGH LIFT OPTIONS
- Non-Standard Fork Lengths
- Dual Overhead Guard-Mounted LED Headlights
- Dual Rear Safety LED Light Bars
- Backup Alarm – Beeping Tone (“Smart” dB Adjusting)
- Safety Flashing LED Light
- Blue Pedestrian Warning Spotlights
- Fire Extinguisher – OHG Post Mounted
- Roller / Slide-Out Battery Tray
- Lazer Fork Height Indicator
- Hydraulic Integral Fork Positioner
- Hydraulic Fork Extensions
- Camera with Monitor in Operator’s Compartment
- Cold Storage Conditioned to -22°F (-30°C)
