Description

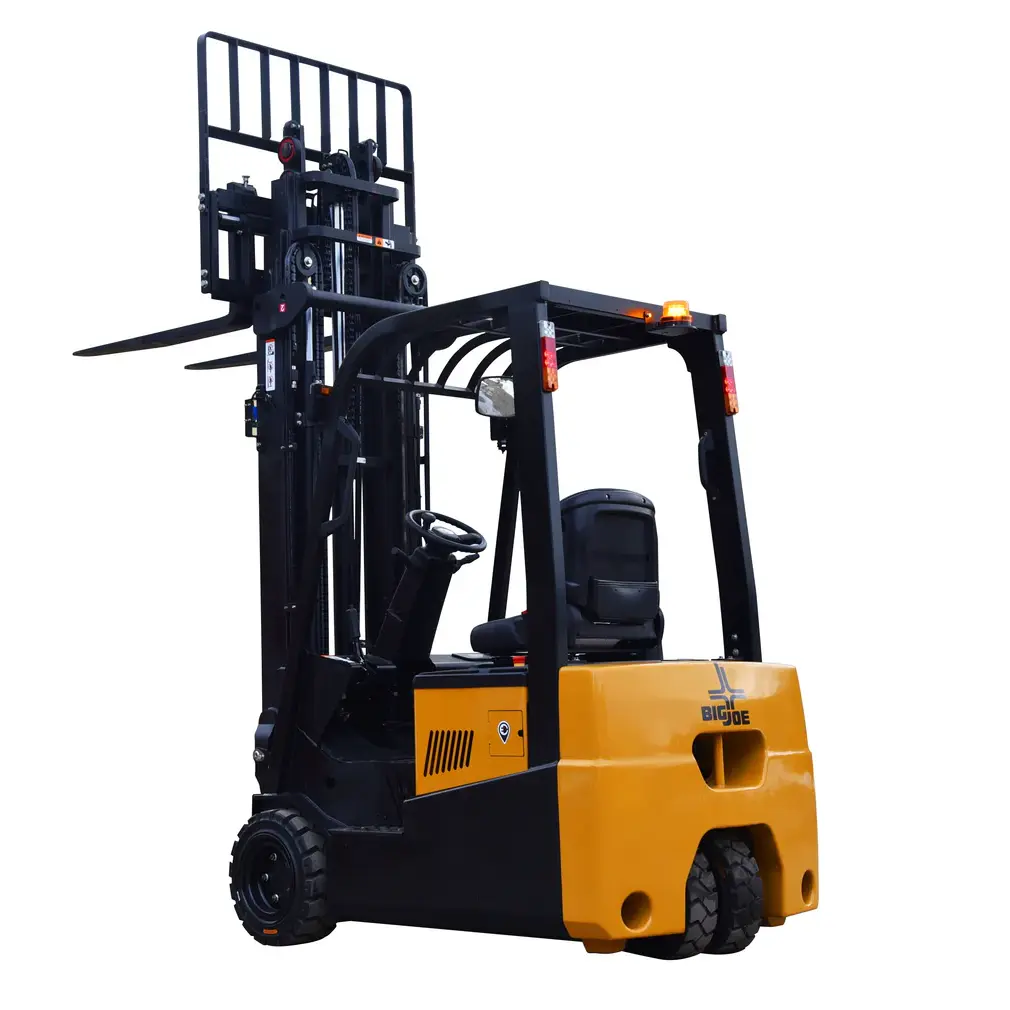

The LVE35 Sprint Electric Forklift was uniquely designed from the ground up to help companies take maximum advantage of the latest in lithium-ion battery technology at a low cost of ownership. The new Sprint is a 3,500lb capacity three-wheel model that features dual 80v drive motors to deliver exceptional performance and maneuverability. The Sprint comes standard with a single phase 120vac onboard charger which can be upgraded to 240vac which will make deployments far simpler and less expensive than typical electric forklifts and eliminates the need for eye wash stations, mid-lift battery replacement, or regular battery maintenance needed with traditional electric forklifts.
LVE35 Sprint Electric Forklift Features
- Dual AC drive motors for exceptional maneuverability
- UL recognized 80v 230AH li-ion battery
- Onboard 120vac charger upgradable to 240vac
- Run time of 4-4.5 hours of continuous operation
- Opportunity charge at rate of up to 12% every 15 minutes

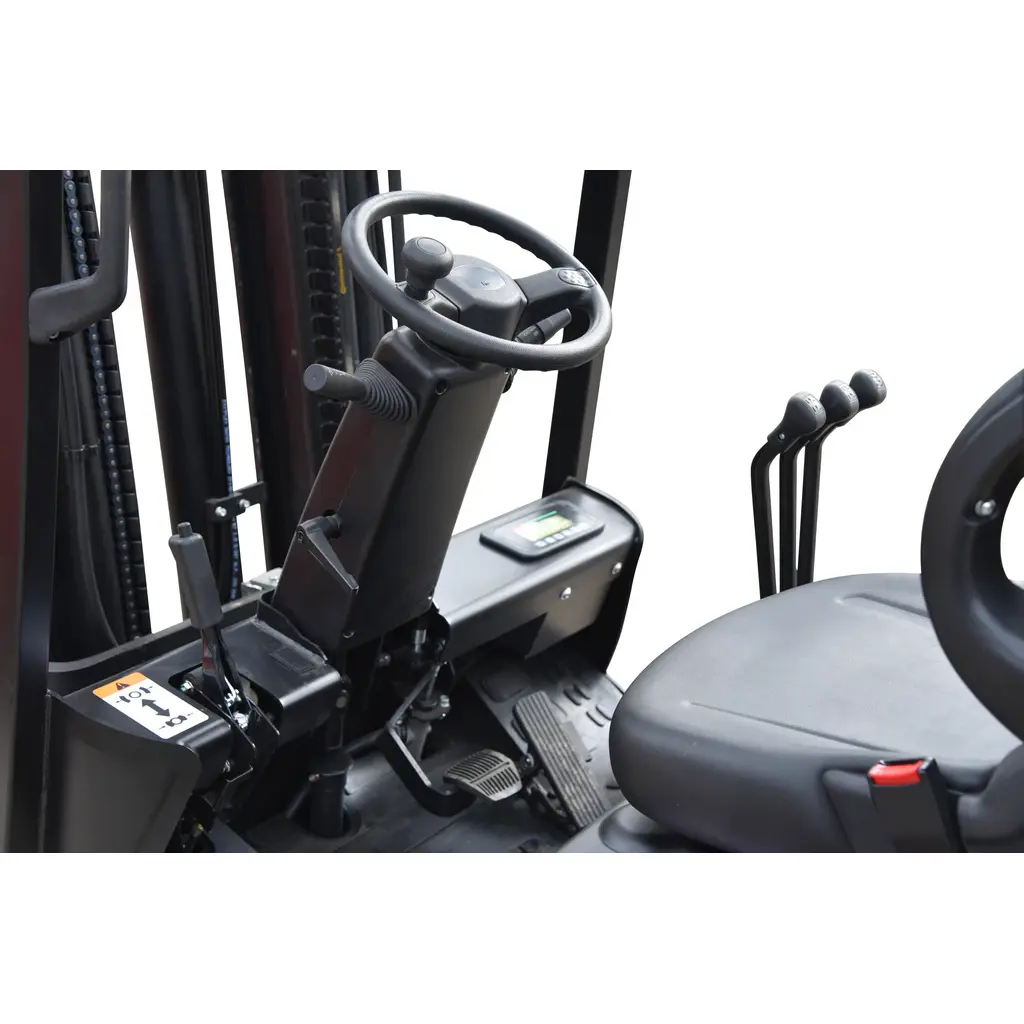

- Programmable digital diagnostic display
- Side-shift functionality for added productivity
- Dual read steer tires for improved stability
- Optional 480vac three-phase charger available
Vehicle Type | Three-Wheel Lithium Forklift Truck |
Capacity | 3,500lbs. @ 24” load center to 130″, derate to 189″/197″ |
Power | UL recognized 80v 230AH Li-ion battery |
Max Lift Height | 189″ to 197″ |
Collapsed Height | 88.2″ to 90.7″ |
Fork Dimensions | 42″ Standard / 48″ Optional |
Vehicle Dimensions | See specification sheet |
Turning Radius | See specification sheet |
Travel Speed | See specification sheet |
Battery Compartment | See specification sheet |
Battery Capacity | See specification sheet |
Charger | Onboard 120vac & 240vac / External 480vac three phase option |
Vehicle Type | Three-Wheel Lithium Forklift Truck |
Capacity | 3,500lbs. @ 24” load center to 130", derate to 189"/197" |
Power | UL recognized 80v 230AH Li-ion battery |
Max Lift Height | 189" to 197" |
Collapsed Height | 88.2" to 90.7" |
Fork Dimensions | 42" Standard 48" Optional |
Charger | Onboard 120vac & 240vac External 480vac three phase option |
