Description

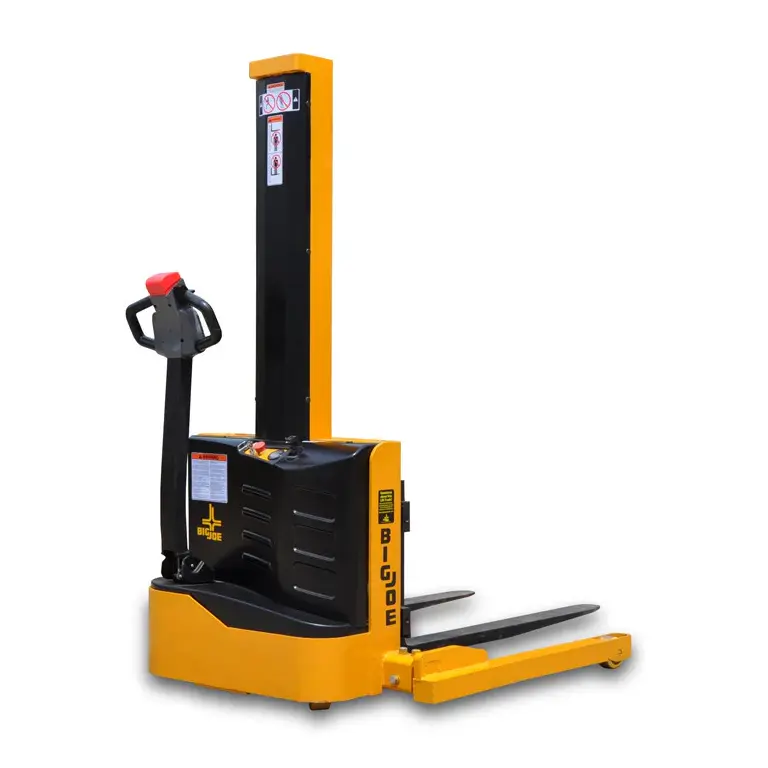

2,200lb. capacity walkie straddle stacker featuring mono-mast construction and a 62″ lift height. An easy to use and maintain truck that is a good choice for general material handling, stacking and work positioning in tight areas. Also available in two-stage mast and higher lifting heights.
S22 Straddle Stacker Features
- 24volt Curtis transistor control
- High efficiency permanent magnet drive motor.
- Adjustable straddles
- Infinitely variable speed operation for tight turning in close quarters
- Ergonomic handle with safety reversing switch and horn
- Maintenance free integral battery pack and 110volt charger
- Battery discharge indicator, Emergency power disconnect
- Key switch to limit access to approved personnel
| Vehicle Type | Walkie Straddle Stackers |
| Capacity | 2,200lbs. @ 24” load center |
| Power | 24 volt - S22 DC / S30 AC |
| Max Lift Heights | S22 62", 96", 116" |
| Fork Dimensions | 42" x 4" x 1.5" / S22-62R 45" x 22" |
| Travel Speed | 2.5 mph |
| Battery Capacity | S22 60AH to 85AH |
| Charger | Integral to pack, 110v plug-in |
