Description

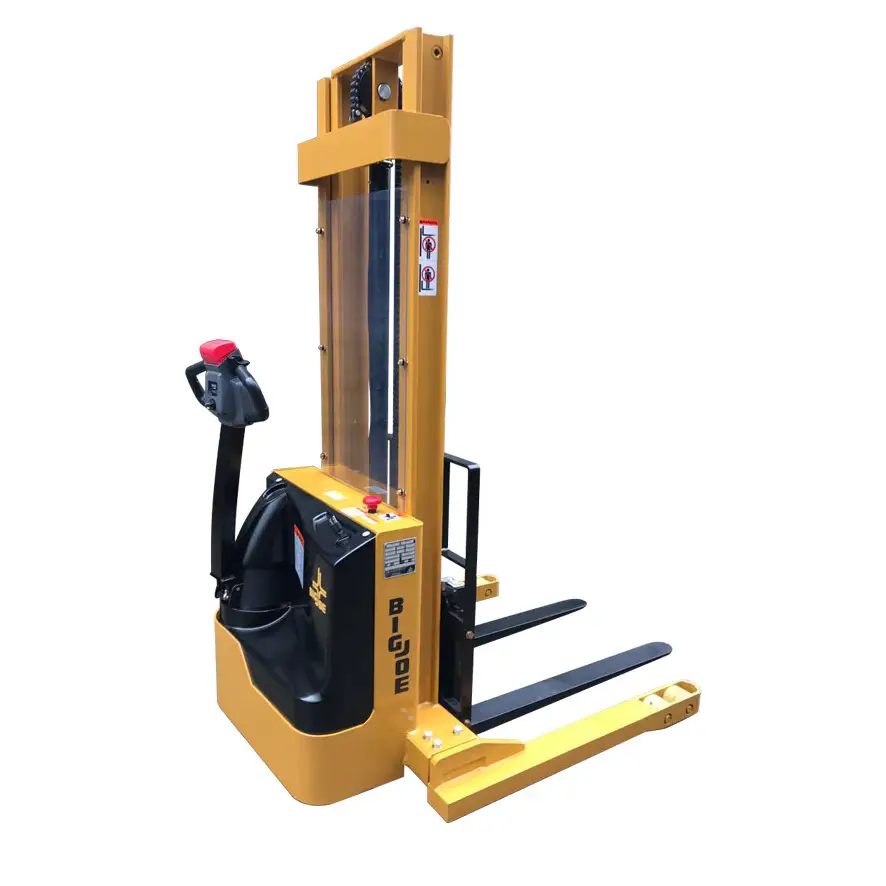

The Big Joe S30 3,000 lbs. capacity electric straddle stacker lifts a maximum fork height of 128″. An easy to use and maintain truck that is a good choice for general material handling, stacking and work positioning in tight areas. Smaller footprint and more economical price point than a traditional sit-down forklift.
Big Joe S30 Electric Straddle Stacker Features
- 24volt system
- High efficiency drive motors.
- Adjustable straddles. S22-62R Fork over configuration available.
- Infinitely variable speed operation for tight turning in close quarters
- Ergonomic handle with safety reversing switch and horn
- Maintenace free integral batteries and 110volt charger
- Battery discharge indicator, Emergency power disconnect
- Key switch to limit access to approved personnel
| Vehicle Type | Walkie Straddle Stackers |
| Capacity | 3,000lbs. @ 24” load center |
| Power | 24 volt - S22 DC / S30 AC |
| Max. Lift Heights | 128" |
| Fork Dimensions | 42" x 4" x 1.5" |
| Travel Speed | 2.5 mph |
| Battery Compartment | Integral |
| Battery Capacity | 100AH |
| Charger | Integral to pack, 110v plug-in |
