Description

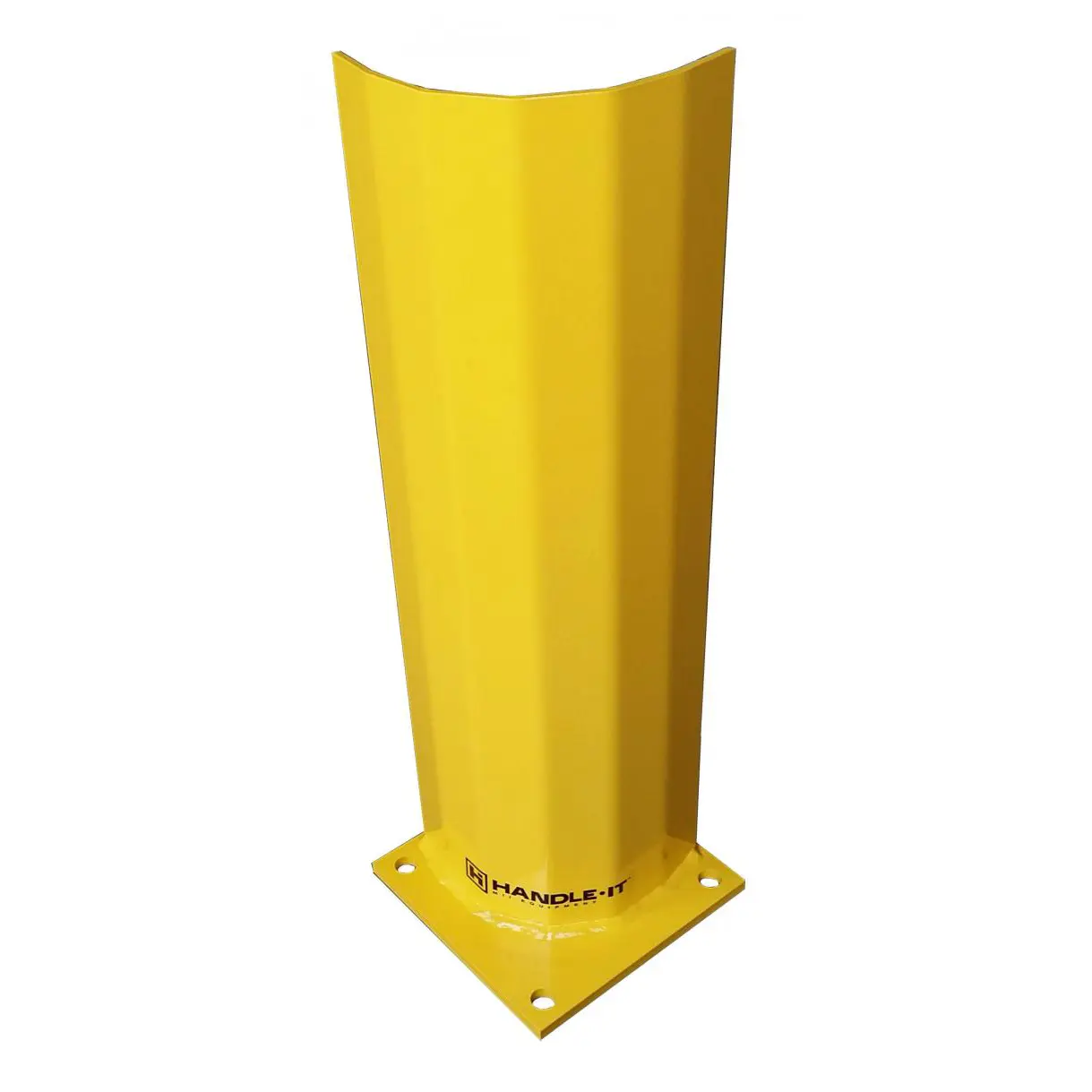

Corner Column Protector
The corner column protector is designed as a flexible way to protect warehouse rack frames, wall corners, and doorways. They are powder coated Handle It Yellow for high visibility. They are mounted to the floor with three 1/2″ wedge anchors and provide economical impact protection from equipment.
Corner Column Protector Features

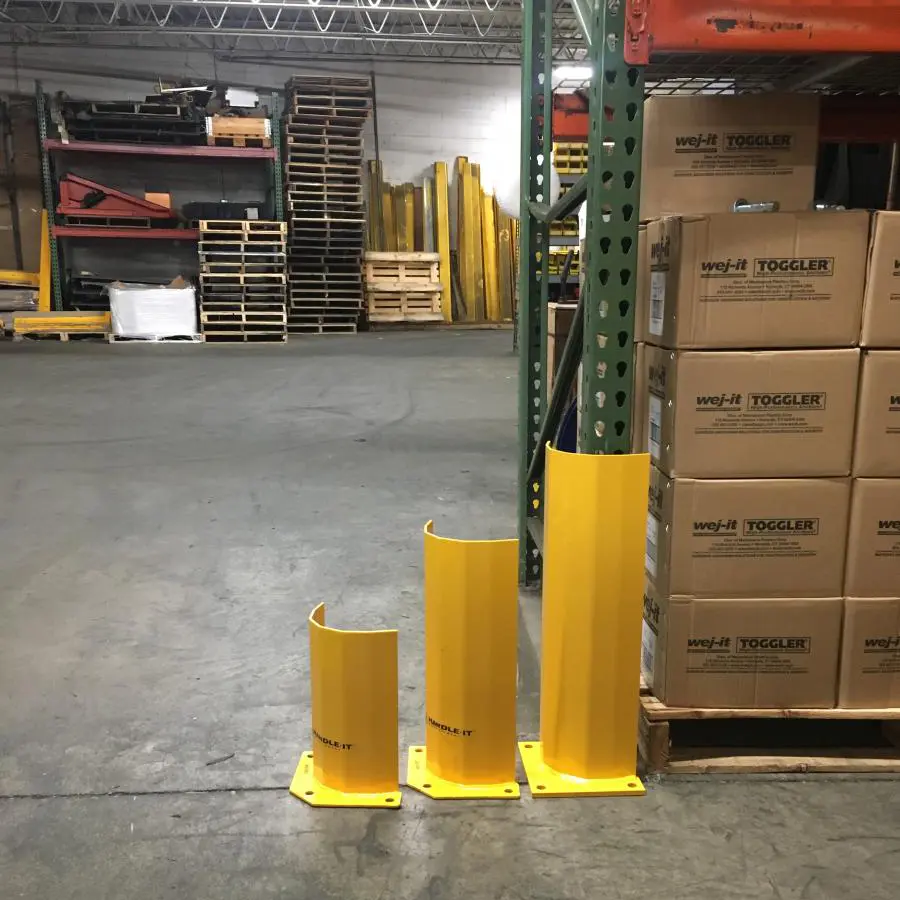

- Guard doorways
- Pallet Rack uprights
- Use at Wall corners
| Part Number | Material Thickness |
Height | Anchor Size | Inside Clearance | Baseplate Size | Weight Lbs. |
|---|---|---|---|---|---|---|
| CCP12 | 6 gauge | 12″ | 1/2″ / 3 total | 6″ x 6″ | 8″x 8″ | 10 |
| CCP18 | 6 gauge | 18″ | 1/2″ / 3 total | 6″ x 6″ | 8″x 8″ | 14 |
| CCP24 | 6 gauge | 24″ | 1/2″ / 3 total | 6″ x 6″ | 8″x 8″ | 17 |
| CCP42 | 6 gauge | 42″ | 1/2″ / 3 total | 6″ x 6″ | 8″x 8″ | 28 |
