Description

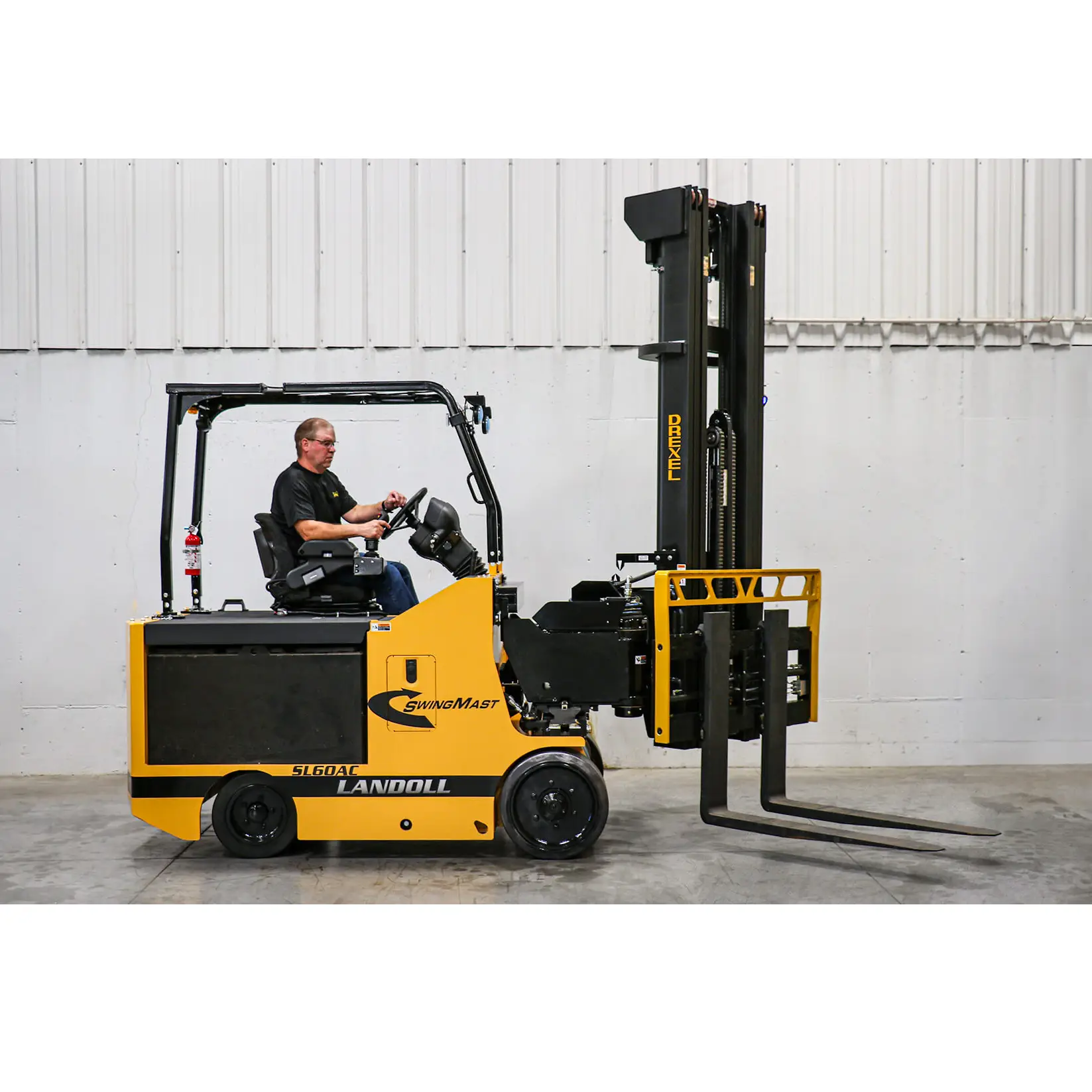

The Drexel SL60SE and SL80SE forklifts are high-capacity SwingMast® models that work in aisles as narrow as 66″ (1.67M)*, have a starting capacity of 6,000 lbs (2722kg) or 8,000 lbs (3629kg) at 24″ (600mm) load center and lift heights available to 289” (7.34M).
They are 4-Wheel SwingMast® VNA and Side-Loading forklifts with independently driven front wheels and dual rear steer tires. The front mast rotates 90°, has side shift of 30” (762mm), allows easy stacking in Very Narrow Aisles. The Drexel SL60SE and SL80SE can work inside and outside on paved surfaces and can perform the jobs of high-capacity front loading and side-loading forklifts including working in bulk storage, cantilever rack, push-back rack, double deep and climbing steep ramps. The SL range does the same jobs of reach and counterbalanced trucks in aisles over 40% smaller. The ability to store and transport heavy long loads as a side loader increases versatility and maximizes utilization.
* Based on 48” (1200mm) long x 40” (1000mm) wide load.
Drexel SL60 Forklift Features
- 6,000 lb. (2722kg) and 8,000 lb. (3629kg) Capacities at 24″ (600mm) Load Center
- Four-Wheel Design, Independently Driven Front Drive Wheels and Dual Rear Steering Wheels Provide Excellent Maneuverability and Traction
- Ergonomic Design for Exceptional Operator Comfort and Safety
Dual Joysticks Control all Hydraulic Functions - Hydrostatic Power Steering Provides Smooth, Reliable, Long-Lasting Steering Control
- Adjustable Suspension Seat Improves Operator Comfort
- 80 Volt Electrical System
- Large Battery Compartment Allows Maximum Battery Capacity for Long Run Times
- High Visibility Mast Allows Optimum Safety and View of Loads and Forks
- AC and Hydraulic Motors Ensure Minimal Maintenance and High Efficiency
- High Efficiency Curtis SEPEX Controllers Provide Trouble-Free Operation
- Interactive LCD Status Monitor (BDI with Lift Interrupt, Hour Meter with Service Monitor, Diagnostic Code Display, Input Device Calibration)
Drexel SL60 Forklift Options
- EE Construction (Includes Battery Side Cover)
- Non-Standard Fork Lengths
- Dual Overhead Guard Mounted LED Headlights
- Dual Rear Safety LED Light Bars
- Safety Flashing LED Light
- Backup Alarm – Beeping Tone (“smart” dB adjusting)
- Fire Extinguisher – OHG Post Mounted
- Cold Storage Conditioning to -22° F (-30° C)
- Roller Slide-Out Battery Tray
- Lazer Fork Height Indicator
- Fork Positioner
- Keyless Key Pad On-Off
- Long Load Handling Package
- Auxiliary Hydraulics
- Overload Sensor with Alarm
