Description

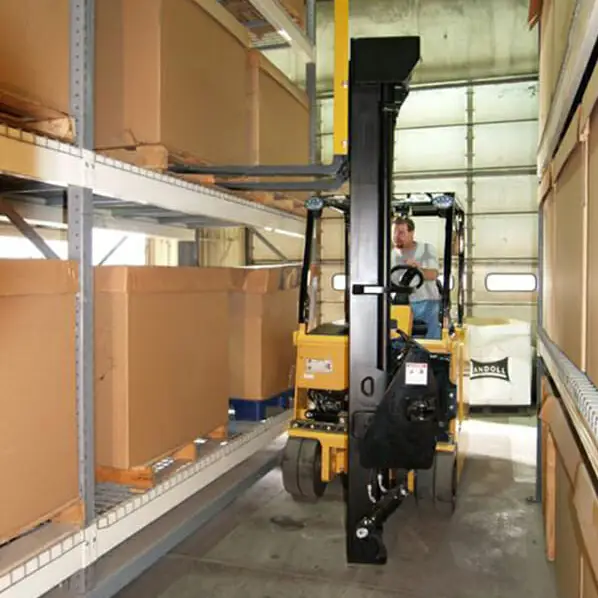

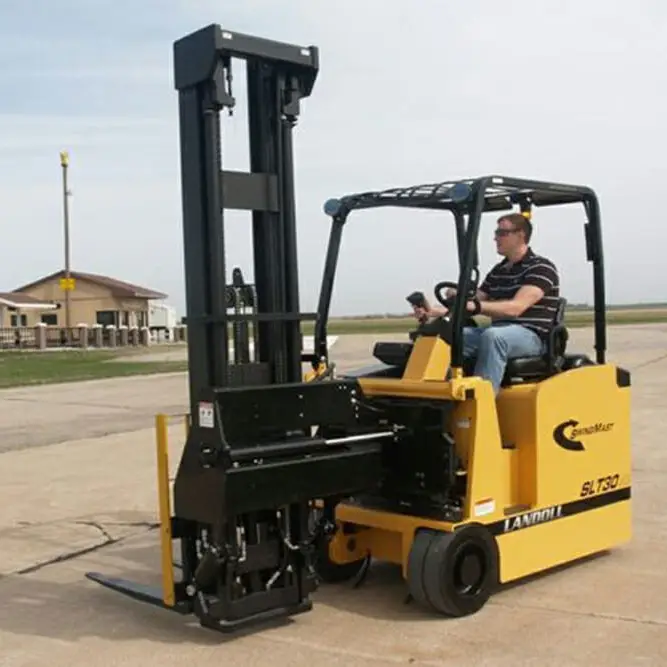

The Drexel model SLT30AC and SLT35AC swing mast forklift work in aisles as narrow as 56″ and have a basic capacity of 3,000 lbs. or 3,500 lbs. at 24″ load center and lift heights available to 26′. The SLT30AC and SLT35AC are 3-wheel front/side loading VNA forklifts with a single smooth rubber rear-drive/steer tire and solid poly-front load tires. The front mast rotates 90° and has side shift of 20”, allowing stacking easily in Very Narrow Aisles. Both models can work inside and outside on paved surfaces, can perform the jobs of a normal front-loading forklift (including loading and unloading highway trucks and containers, working in bulk storage, drive-in rack, push back rack, double deep and climbing steep ramps). The SLT range does the jobs of reach and counterbalanced trucks in aisles over 50% smaller. The rear steering and drive allow turning in short-cross aisles further increasing the storage density when compared to counterbalanced trucks.
Swing Mast Forklift Features
- 3,000 lb. (1361kg) and 3,500 lb. (1588kg) Capacity at 24″ (600mm) Load Center
- Three-Wheel Design, Single Rear-Wheel Drive and Steering Provide Excellent Maneuverability and Traction
- Ergonomic Design for Exceptional Operator Comfort and Safety
- Single Joystick Controls Hydraulic Functions, Directional Control, Horn and Wire Guidance
- Electronic Steering Provides Smooth, Reliable, Long-Lasting Steering Control
- Interactive LCD Status Monitor (BDI with Lift Interrupt, Hour Meter with Service Monitor, Diagnostic Code Display, Input Device Calibration)
- An Electro/Mechanical Parking Brake is Automatically Applied When Power is Turned Off or the Operator Leaves the Seat
- High Visibility Mast Allows Optimum Safety and View of Loads and Forks
- AC Traction and Hydraulic Motors Ensure Minimal Maintenance and High Efficiency
- High Efficiency Curtis AC Controllers Provide Trouble Free Operation
- 48 Volt Electrical System and Large Capacity Battery Compartment
- Optional Cold Storage Conditioned to -22°F (-30°C)
- The Adjustable Swivel Seat Improves Operator Comfort while Traveling in Reverse
