Description
Edge of Dock Leveler

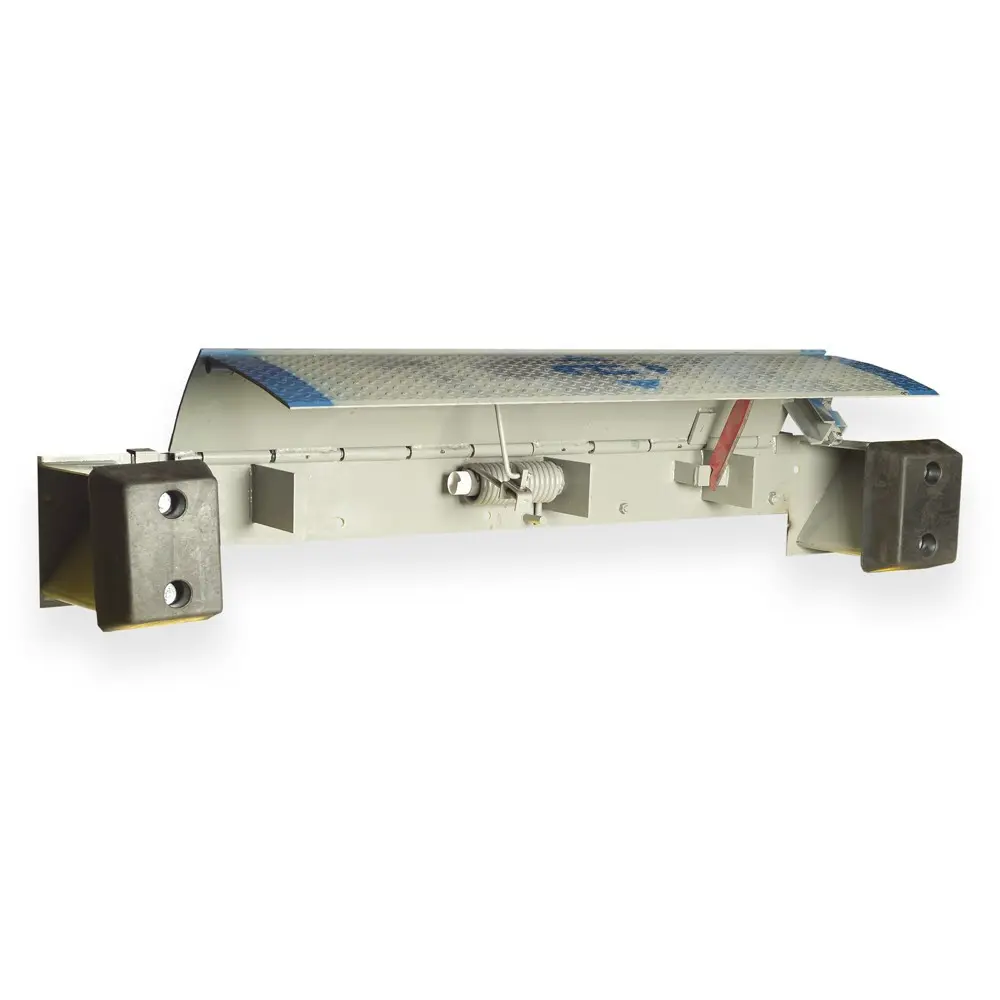

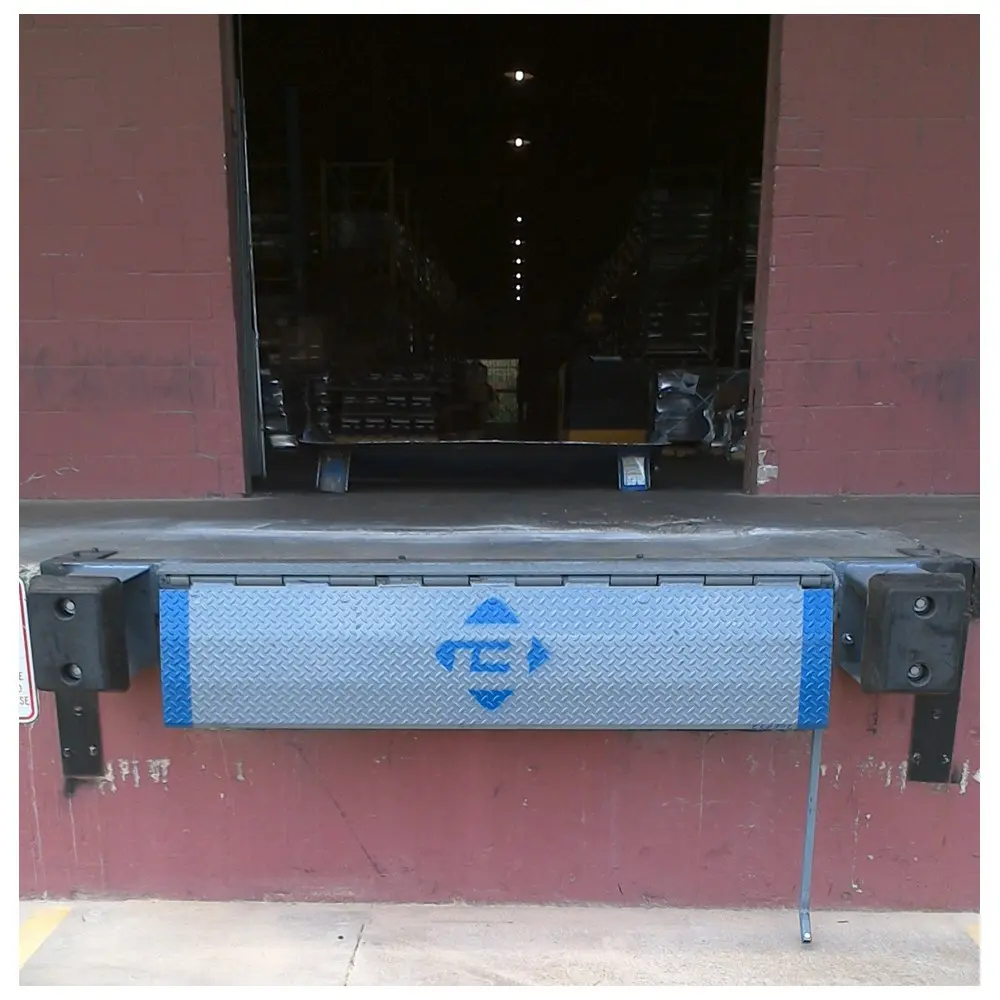

The Bluff mechanical freight edge of dock leveler provides a loading ramp to bridge the gap and height difference between docks and trailers. Includes bumper and bumper blocks. Available in multiple widths and maximum load capacity between 20,000 lbs. to 30,000 lbs. Conforms to ANSI MH30.1 performance standards. Installation hardware sold separately. Position the steel diamond tread plate ramp easily by lifting a self-storing handle and pulling the handle to the dock floor. The latch assembly activates the lip, moving it forward to the floor of the trailer as the handle is lifted. When released, the handle automatically returns to a convenient stored position.
Edge of Dock Leveler Features
- Capacities from 20,000 to 30,000 lbs.
- Available widths of 66”, 72” and 78”
- Self-Storing handle
- Bumper and bumper blocks included
- Optional add-ons include: anchor kit, approach plate, longer lip for refrigerated trucks, steel faced bumpers and hydraulic package
| MODEL NUMBER | CAPACITY(LBS) | WEIGHT (LBS) | OVERALL WIDTH (IN) | USABLE WIDTH (IN) | LIP LENGTH (IN) | SPAN (IN) |
|---|---|---|---|---|---|---|
| 20EP66 | 20000 | 448.00 | 88 | 66 | 15 | 27.75 |
| 20EP72 | 20000 | 476.00 | 94 | 72 | 15 | 27.75 |
| 20EP78 | 20000 | 504.00 | 100 | 78 | 15 | 27.75 |
| 25EP66 | 25000 | 509.00 | 88 | 66 | 15 | 27.75 |
| 30EP66 | 30000 | 509.00 | 88 | 66 | 15 | 27.75 |
| 30EP72 | 30000 | 542.00 | 94 | 72 | 15 | 27.75 |
| 30EP78 | 30000 | 576.00 | 100 | 78 | 15 | 27.75 |
