Description

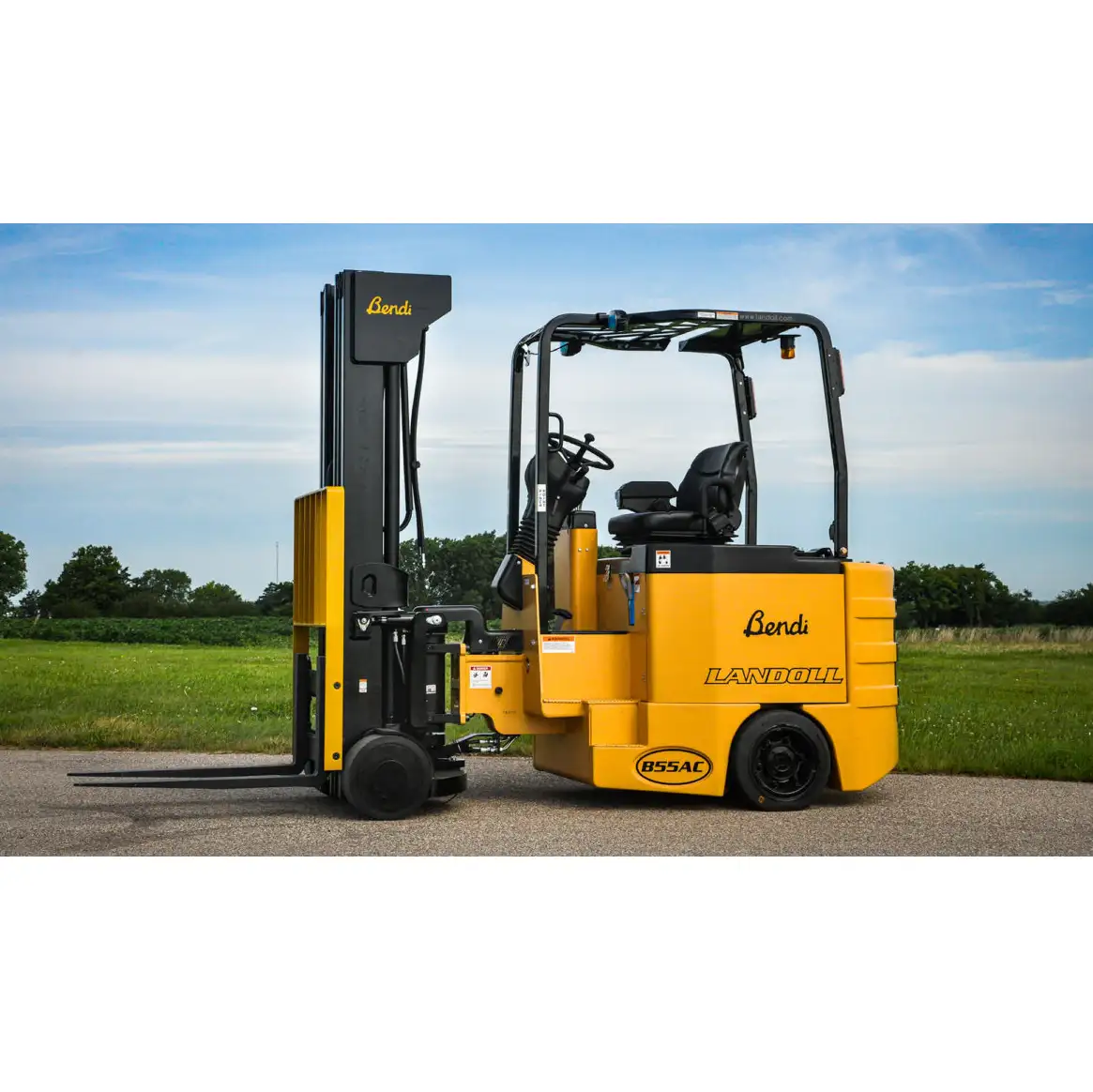

HIGH CAPACITY, HIGH LIFT, NARROW AISLE FORKLIFT

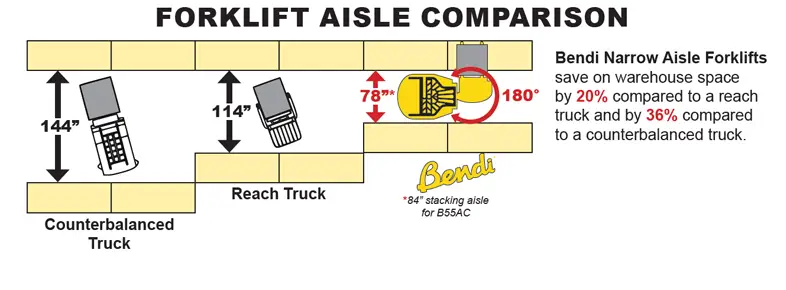

The Bendi B55AC forklift works in aisles as narrow as 84″ (2.13M)*, has a starting capacity of 5,500 lbs. (2495kg) at 24″ (600mm) load center and lift heights available to 30′ (9.14M).
It’s a 4-wheel articulating forklift with dual independently driven rear-drive tires and soft-poly front load tires. Excellent traction, braking and power enable climbing steep ramps with loads. Three or four stage masts are available. The Bendi B55AC can work inside and outside on paved surfaces and have a floating front axle, allowing the truck to ride smoothly over uneven floors. It can do the same jobs as reach and counterbalanced trucks but with much heavier loads and in much narrower aisles.
* Based on 48” (1200mm) long x 40” (1000mm) wide load.
B55AC Bendi Features
- B55AC 5,500 lb. (2495kg) Capacity at 24″ (600mm) Load Center
- Four-Wheel Design, Dual Rear Wheel Drive Provides Excellent Power, Braking and Traction
- Ergonomic Design for Exceptional Operator Comfort and Safety
- Integral Wide Stroke Side Shifter Makes Placing and Picking Loads Effortless
- DuraSteerTM Front Wheel Hydraulic Steering Provides Smooth, Reliable, Long-Lasting Steering Control
- Independently Controlled Rear Wheels Allow Independent Speed Control of Each Drive Tire Based on Steering Angle
- Creep Speed Mode Adds Enhanced Control when Handling Loads at High Elevations or While Training Operators
- High Visibility Mast Allows Optimum Safety and Control
- AC Traction and Hydraulic Motors Ensure Minimal Maintenance and High Efficiency
- High-Efficiency Curtis AC Controllers Provide Trouble Free Operation
- Interactive LCD Status Monitor (BDI with Lift Interrupt, Hour Meter with Service Monitor, Diagnostic Code Display, Input Device Calibration)
- 48 Volt Electrical System
- Optional Cold Storage Conditioned to -22°F (-30°C)
B55AC Bendi Forklift Options
- Non-Standard Fork Lengths
- LED Headlights, Flashing Light and Rear Safety Lights
- Integral Side Shifting Fork Positioner
- Auxiliary Hydraulics
- Non-Marking Tires
- UL 583, Type EE Electrical Rating, FM Approved
- Vinyl Seat
- Slide-Out Battery Tray
- Fire Extinguisher
- Lazer Fork Height Indicator
- Carriage Mounted Camera with Operator Compartment Monitor
- Capable of Freezer Operation to -22°F (-30°C)
