Description

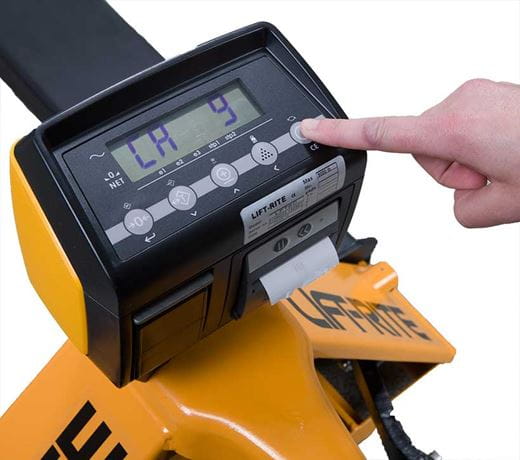

Our Scale Jack is a professional pallet truck scale with printer for industrial and shipping use. The pallet truck can handle 5,000 lbs. weight with ease of moving around. All the wheels are rubber rimmed to avoid slipping. Four alloy steel shear beam load cells are mounted on 1/2″ thick steel plates which are firmly welded onto the bottom fork.
The full-length load cell cables are connected to the stainless-steel junction box through the tubes (no exposed wires). The scale is very low profile to move into and out of the pallets smoothly.
Scale Jack Features
- Capacity: 5,000 lbs.

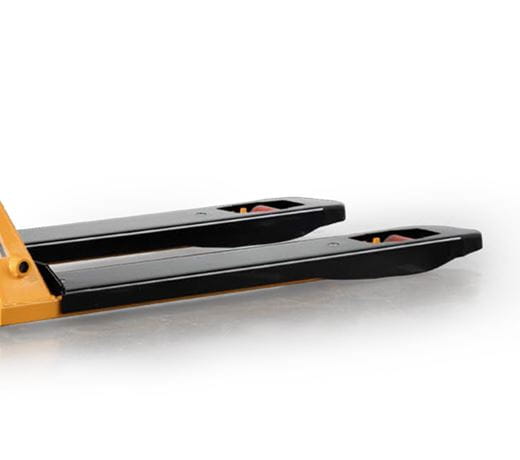

- Fork Length: (standard 47.5)
- Frame Width: 27.50 inches
- Fork Width: 6.70 inches
- Low Height: 3.50 inches
- Raised Height: 8.25 inches
- Wheel Type: Polyurethane
- Wheel Diameter: 7.00 inches
- Roller Diameter: 3.38 inches
- Roller Type: Polyurethane
- Weight: 282 lbs.
