Description

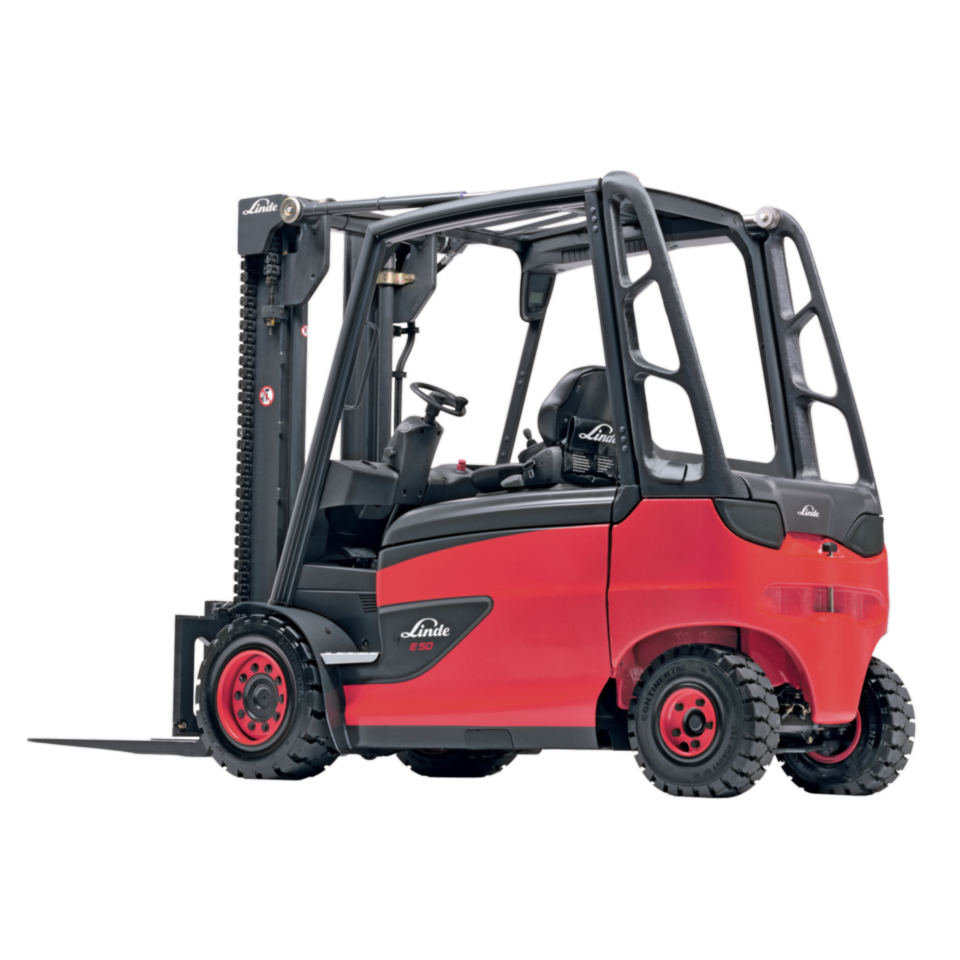

Linde 388 Series E35 – E50 Electric Forklift
Linde 388 Series Electric Forklift – This outstanding range of four wheeled configuration electric forklifts offers a comprehensive selection of specifications to meet the hugely varying requirements of every type of application. Whether the requirement is for compact chassis, long wheelbase or high versions for bulky loads this series offers the optimum solution.
These forklifts offer impressive performance with low energy consumption. All this is possible thanks to the “all-in-one” transmission axis technology, with twin drive maintenance-free AC motors integrated into the drive axle. The protective overhead guard forms a strong and completely enclosed protective zone providing optimum structural integrity, safety and protection for the operator. The top mounted tilt cylinders provide seamless control for excellent load stability in all operating conditions.
388 Series Electric Forklift Features
- Hydrostatic power steering
- Linde dual pedal travel control
- Individual hydraulic control levers integrated into the adjustable armrest
- 80 Volt electrical system
- 2 x 12 HP, high performance, maintenance free, AC drive motors
- 29.5 HP, high performance, maintenance free, AC hydraulic motor
- Display of battery operating time in minutes
- Automatic parking brake
- Linde dual motor drive
- Proportional reduction of travel speed when cornering (Linde Drive Assistant)
- Full suspension, adjustable, PVC operator’s seat with armrest
- Comprehensive digital instrument display
- Generous storage space for writing materials and miscellaneous items
- SE tires
| Model | Capacity (lbs.) |
Load center (in) |
Voltage battery |
Height overhead guard | Turning radius (in) |
|---|---|---|---|---|---|
| E35P/600H | 7500 | 24 | 80 | 92.9 | 87.1 |
| E40P/600 | 8500 | 24 | 80 | 92.9 | 87.1 |
| E40P/600HL | 8500 | 24 | 80 | 92.9 | 93.0 |
| E45P/600H | 9500 | 24 | 80 | 92.9 | 88.1 |
| E45P/600HL | 9500 | 24 | 80 | 92.9 | 98.4 |
| E45/600L | 9500 | 24 | 80 | 87.4 | 98.4 |
| ES0PHL | 10000 | 24 | 80 | 92.9 | 98.4 |
| E50L | 10000 | 24 | 80 | 87.4 | 98.4 |
| E50P/600HL | 11000 | 24 | 80 | 92.9 | 98.4 |
| E50/600L | 11000 | 24 | 80 | 87.4 | 98.4 |
