Description

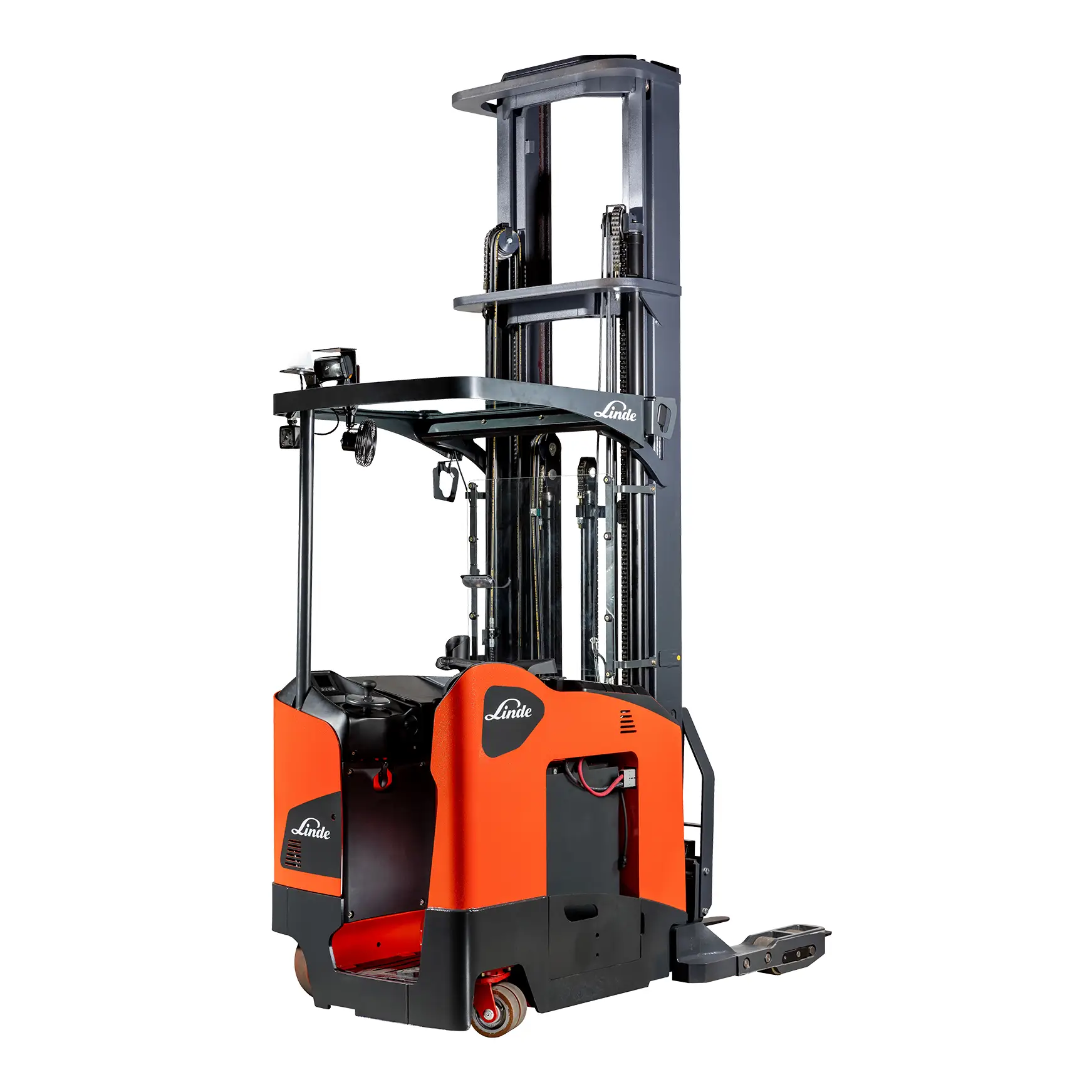

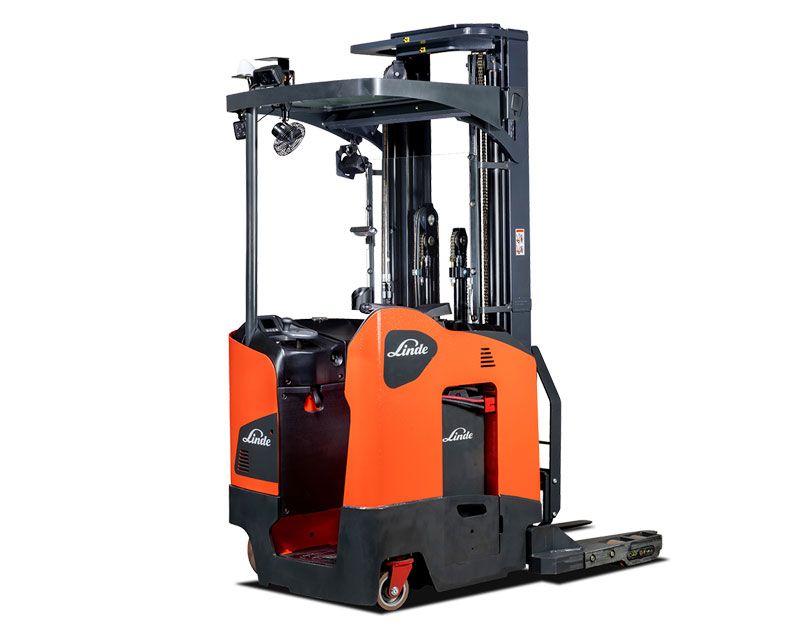

Linde’s 5195 series pantograph reach truck provides a perfect solution for narrow aisles, with smooth maneuvering, and intuitive operator safety.
Linde understands narrow aisle applications. The result, over 70 years of designing and manufacturing the most reliable forklift trucks in the industry. At any location across the globe, you will see a Linde forklift operating in any environment. Extensive testing and design result in the most efficient electric trucks in the market. Cutting-edge technology leads to a competitive edge. Linde warehouse products are recognized as the highest potential cost of operation gains in the industry.
5195 Series Reach Truck Features
- Lifting Heights from 15 – 42 ft
- Capacity from 3,000 – 4,500 lbs
- Capacity Retention
- Single or Double Reach Mast
- Fixed Drive Motor Assembly
- Side Stance Position
- 12-14 Hour Run Times
- Dual Polyurethane Caster Wheels
| Model | Power Unit | Load Capacity (Q lb) |
Load Center (c in) |
Wheelbase (y in) |
Tire Size: Front | Tire Size: Rear | Battery Voltage |
|---|---|---|---|---|---|---|---|
| R17SX-24V | Electric | 3500 | 24 | 58.9 | 13.5 x 5.1 | 5 x 4 | 24V |
| R17SX-36V | Electric | 3500 | 24 | 60.9 | 13.5 x 5.1 | 5 x 4 | 36V |
| R22SX | Electric | 4500 | 24 | 60.9 | 13.5 x 5.1 | 5 x 4 | 36V |
| R15SX | Electric | 3000 | 24 | 60.9 | 13.5 x 5.1 | 5 x 4 | 36V |
