Description

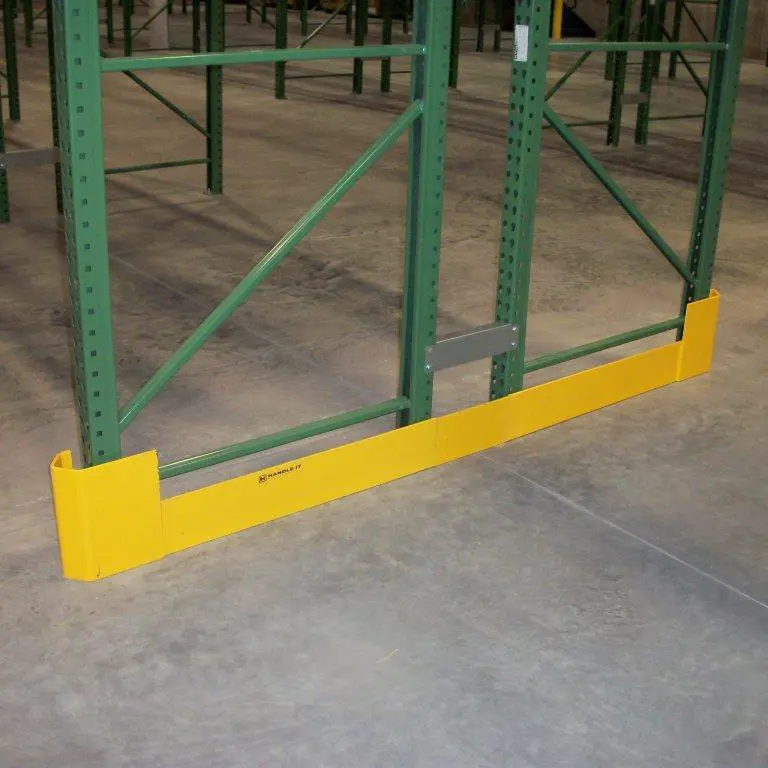

End of Aisle Rack Protectors
Handle It Space Saving Rack Protectors are installed at the end of rack aisles. The unique design allows you to install the guards around the rack legs saving you space especially where driving lanes are tight. The low profile guard also saves space on your first pallet position. Space saving rack protectors are ideal when space is tight.
| Part Number | Ext. Length | Angle Dims. | Notch Clearance | Guard Height | Thickness | Orientation | Weight |
|---|---|---|---|---|---|---|---|
| IRP-42RH-HD | 42 | 6X4 | 9″ | 12″ | .375 | Left | 61 |
| IRP-42RH-HD | 42 | 6X4 | 9″ | 12″ | .375 | Right | 61 |
| IRP-48LH-HD | 48 | 6X4 | 9″ | 12″ | .375 | Left | 66 |
| IRP-48RH-HD | 48 | 6X4 | 9″ | 12″ | .375 | Right | 66 |
| IRP-42-HD | 42 | 6X4 | 9″ | 12″ | .375 | Double | 82 |
| IRP-48-HD | 48 | 6X4 | 9″ | 12″ | .375 | Double | 92 |
| RP-42EX-HD | 42 | 6X4 | .375 | Extender | 38 | ||
| RP-48EX-HD | 48 | 6X4 | .375 | Extender | 42 | ||
| RP-62EX-HD | 62 | 6X4 | .375 | Extender | 59 |
