Description
SINGLE REACH 3,500–4,500 LBS / DOUBLE REACH 3,000 LBS. – AC-POWERED

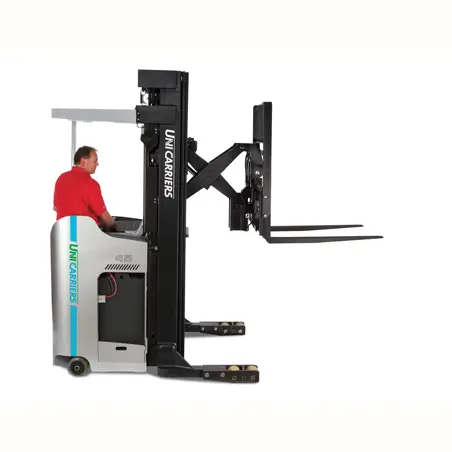

Extraordinary maneuverability, electronic steering and adjustable performance settings combine to make the SRX Single and Double Reach Trucks the right choice for any material handling operation where space is at a premium. The rugged, proven design delivers greater uptime, is intuitive to operate, and easy to service. With its multiple performance settings, a wide range of options and variable capacities, the SRX can be custom-tailored to meet your specific requirements.
UNICARRIERS REACH TRUCK FEATURES
SIMPLE EFFICIENCY

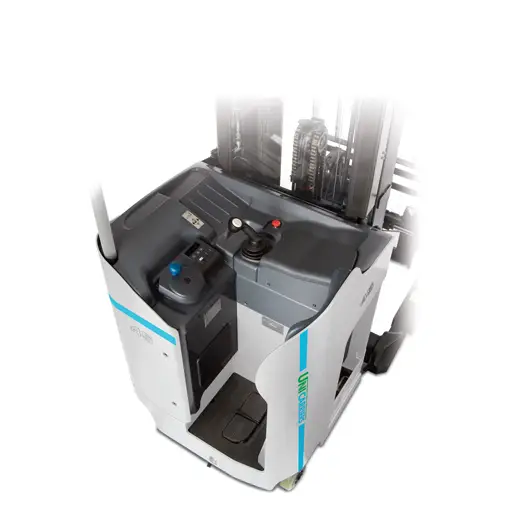

The use of Hall Effect sensors and magnetic reed switches in the control handle — as well as encoders used in the motors and steering tiller — mean no heating components are needed for cold or freezer operations. This design also minimizes the effect of debris on the truck’s operation, resulting in more uptime and greater productivity.
GET BACK UP AGAIN QUICKLY

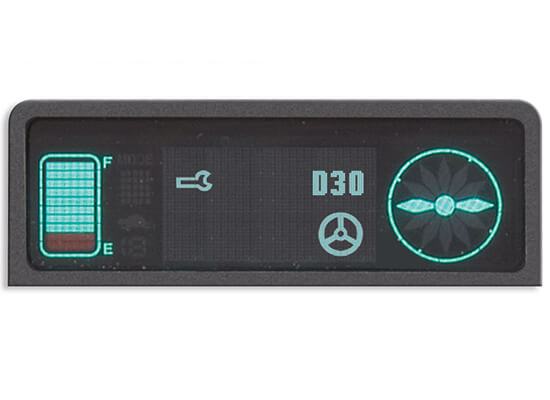

Our sophisticated CAN-Bus Network continuously monitors the truck’s key operating systems, providing smooth operation and continuous diagnostics of all truck components. The LED meter panel is the portal to your truck’s performance, providing ready access to system status, fault codes, service history, and driver alerts to minimize maintenance and downtime. Unlike competitive electric double reach forklift models, no tablet, laptop, or handset tool is needed to access this information.
OUR HIGH-VISIBILITY, RIGID MAST GIVES YOU MORE FLEXIBILITY

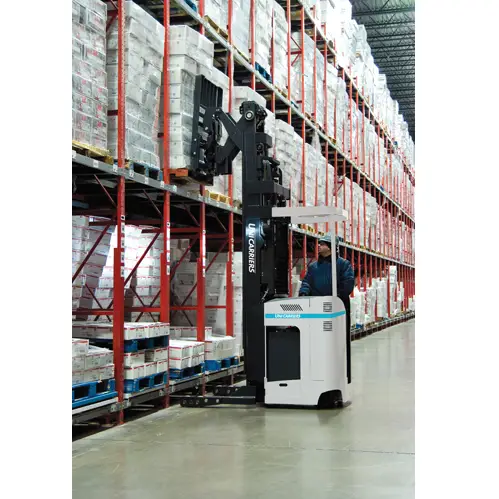

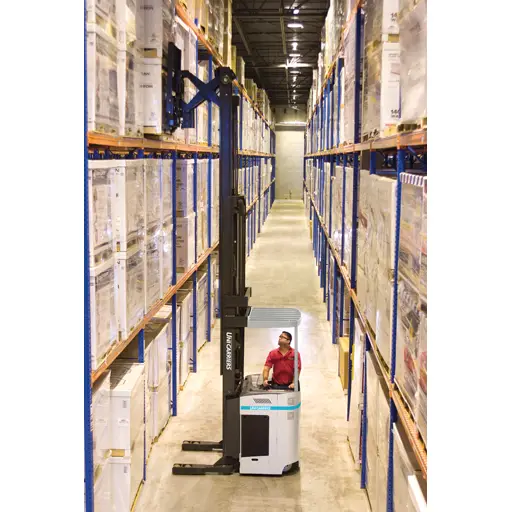

Achieve greater productivity with the SRX Series’ high-visibility mast. Its rugged construction features two interlocking I beam rails nested within a rigid outer channel and includes six heavy-duty rollers from carriage to mast rail.
UNICARRIERS REACH TRUCK SPECIFICATIONS
| Model | Basic Capacity (lbs.) | Maximum Fork Height ² | Voltage (or Fuel Type) | Length To Fork Face | Chassis Width (in) | Chassis Height (in) ¹ | Gross Weight (lbs) ¹ |
| SRX30ND | 3,000 | 210 | 36 | 61.9 | 43 | 93.5 | 6,715 |
| SRX45N | 4,500 | 210 | 36 | 55.0 | 43 | 93.5 | 6,420 |
¹ Where applicable, does not reflect optional mast collapsed height or additional weight.
² Various lift heights available to match your exact needs. Where applicable, value shown is maximum fork height available as an optional mast.
